Specifications
Equipped With

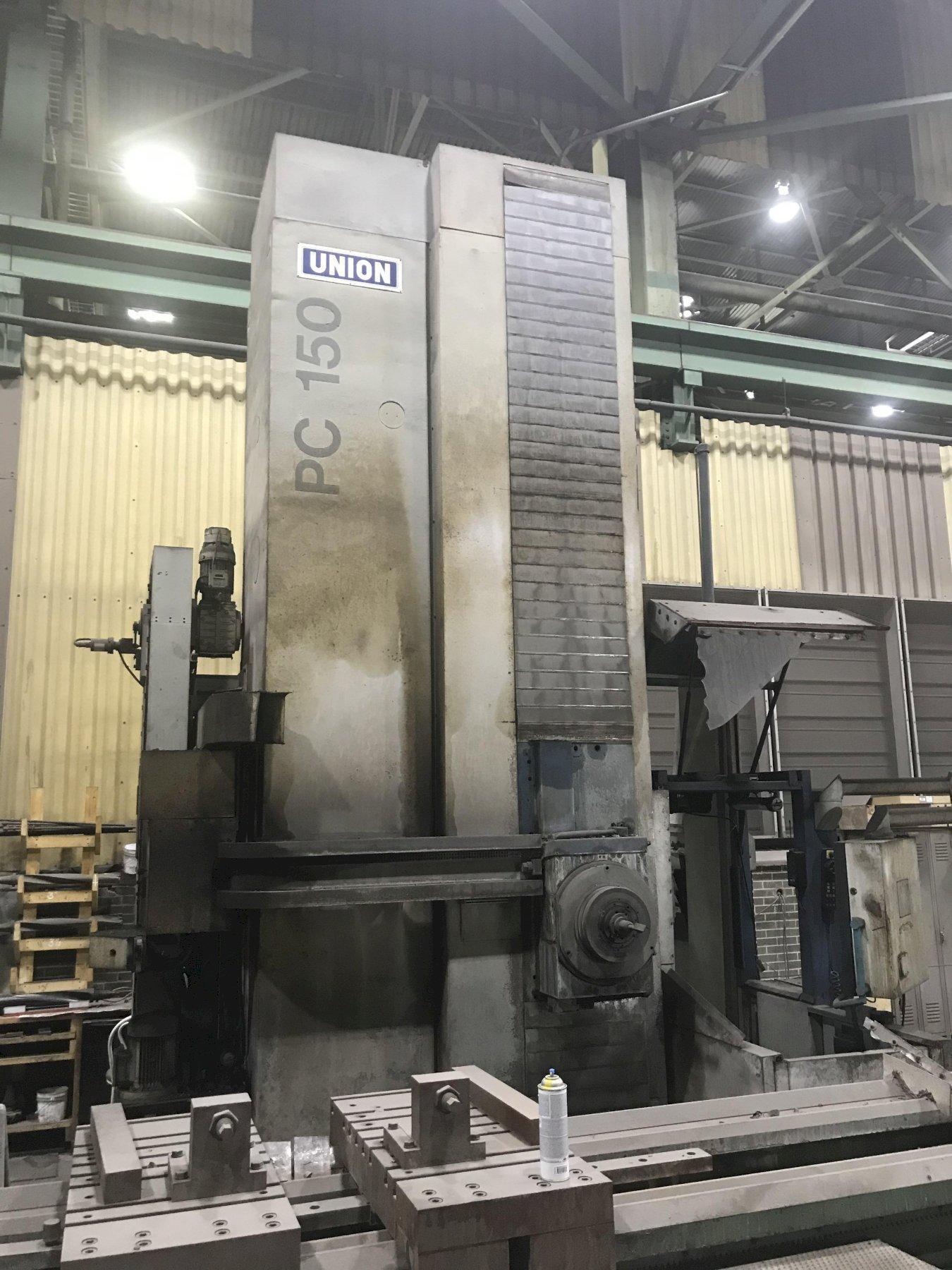

Horizontal Boring Mill, Floor Design, Travels X-Axis 394", Y: Axis 138", Z-Axis 31-1/2", Spinle Travel W-Axis 29 1/2", Operating Speeds 5-782 RPM/783-2800 RPM, Autmatic Tool Change, (ATC), 40 Position (not working or not in use??), Heidenhan Programmable CNC Control, (Original),Hydraulic & Cooling System, Linear Bearings 40' Travel & Planetary Drives Replaced, New Expandable Metal Way Covers and New Wardcraft Chip Conveyor 15'L + 8' Incline, Steel Belt Design Installed 2015 ,32" x 372" Raised American Lathe, Manual Operation, 43" Four Jaw Chuck, Swing 38" Diameter, Installed in Front of Machine Utilized as a Material Handling Manipulator, Rotating Work Piece, (photo 4615),
