Specifications
Equipped With

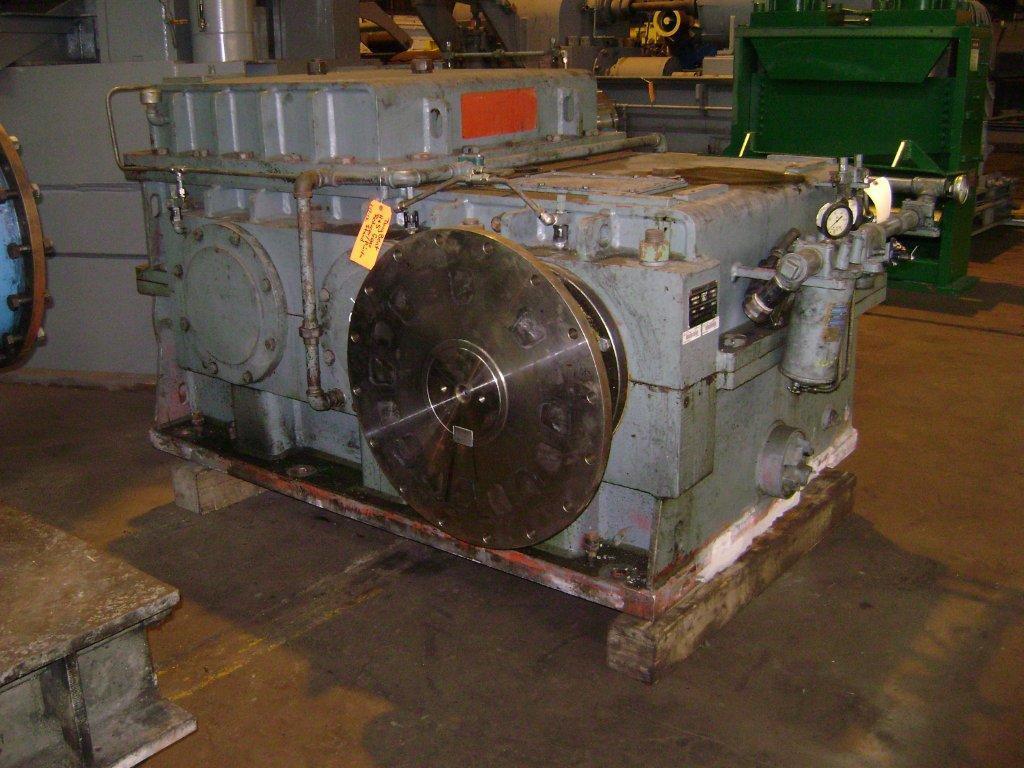

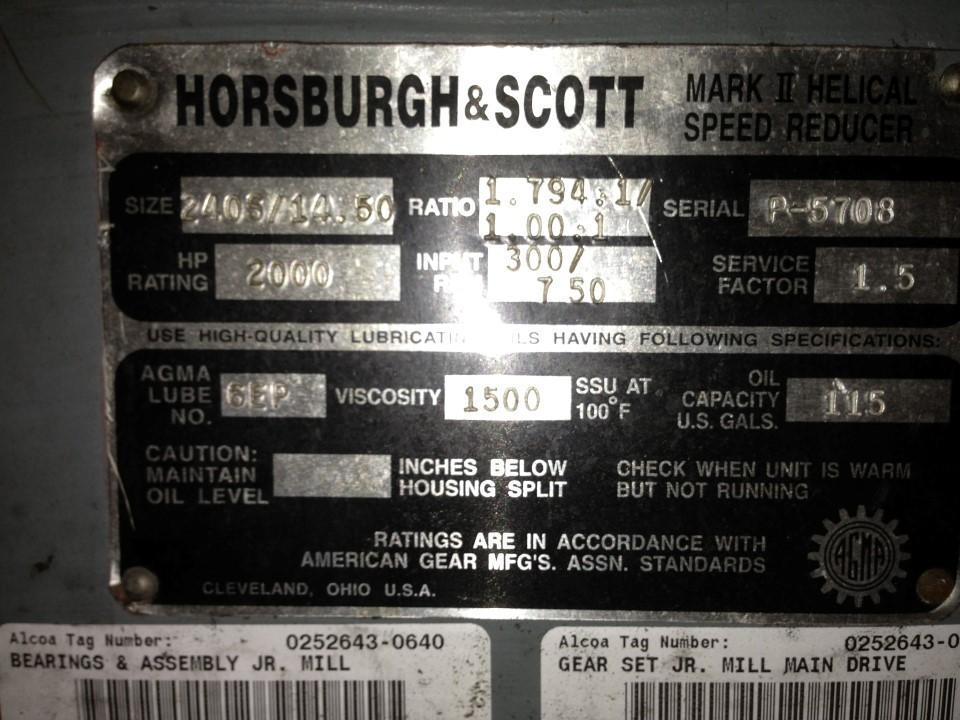

Manufacturer: Horsburgh & Scott Capacity (HP): 2,000 HP (1,492.000 kw) Service Factor: 1.5 Gear Ratio: 1.794 Input Rpm: 300/750 Rpm Design: Double Helical Gearing Pitch Diameter (Inches): 14.500 Inches (368.300 mm) Gearing Design: Double Helical Bearing Type: Roller Input Shaft Diameter (Inches): 6 Inches (152.400 mm) Input Shaft Length (Inches): 7.500 Inches (190.500 mm) Output Shaft Diameter (Inches): 7.620 Inches (193.548 mm) Output Shaft Length (Inches): 12.380 Inches (314.452 mm) Output Shaft Centers (Inches): 14.500 Inches (368.300 mm) Approximate Overall Dimensions (Inches) Length (Inches): 81 Inches (2,057.400 mm) Width (Inches): 65 Inches (1,651.000 mm) Height (Inches): 45 Inches (1,143.000 mm) Approximate Weight (Lbs.): 19,000 Pounds Previous Use: Finishing Mill Main Drive
