Specifications
Equipped With

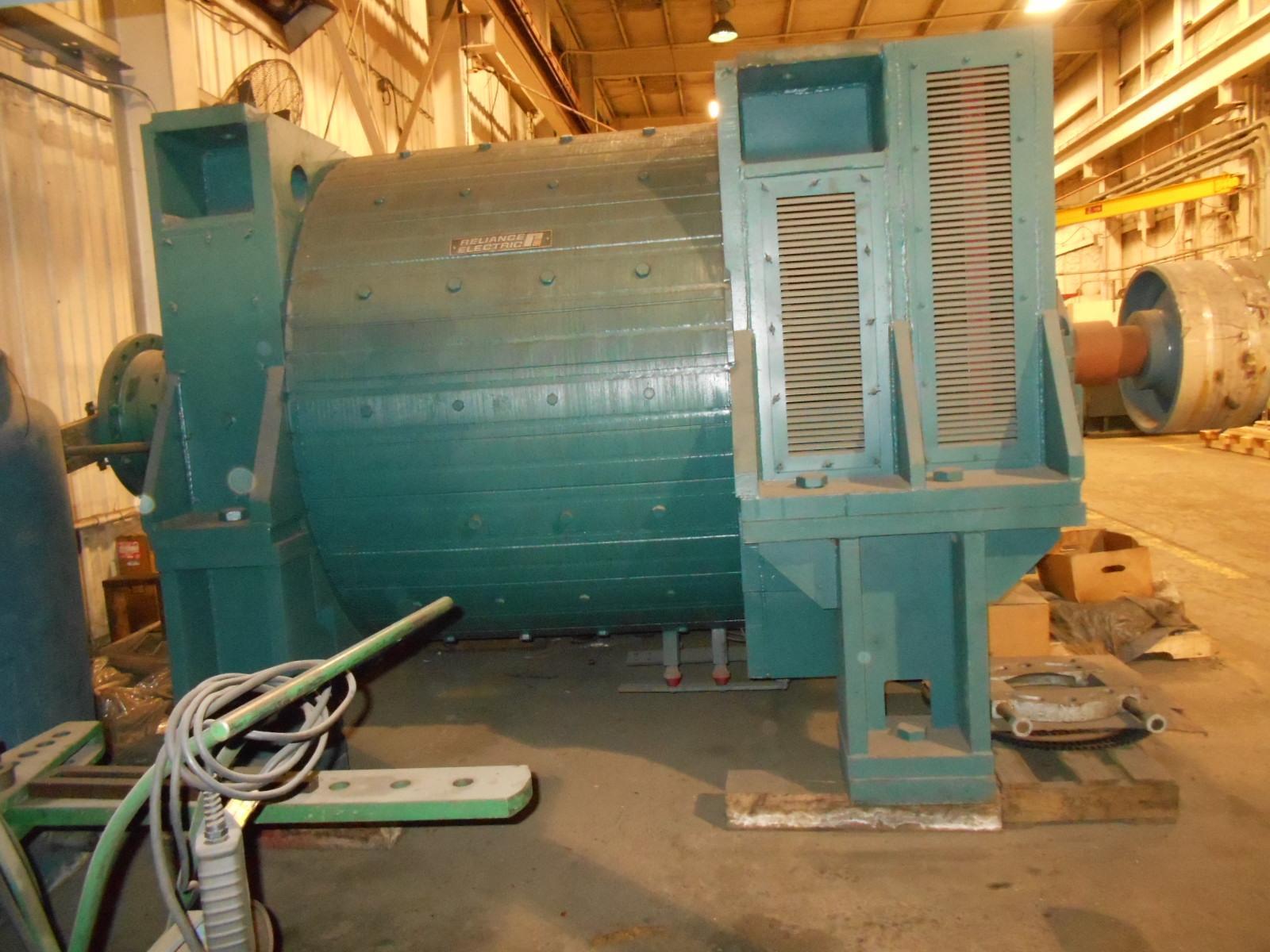

Horsepower: 2,500 HP (1,865.000 kw) RPM: 250/690 Rpm Voltage: 700 Amps: 28 / 1 Current: DC Motor Manufacturer: Reliance Frame: B1610AT Winding: Compensated Field Voltage: 300 / F1 F2 Field Amps: 36.8 / 9.54 Bearings: Roller Ventilation: Air Enclosure: DPG-SV Shaft: Double Extended, Straight Shaft General Condition: Reconditioned Complete Nameplate Data: Identification No. 4DB847332T1VN; Type TR; Continuous Duty; 1.15 S.F.; Class F Insulation; Power Code 6/6-636-60-0; 40 Deg. C Ambient; Instruction Manual 406991-1-64; Field Data: Max Amps 47.5 Weight (Lbs): 76,000 Pounds
