Specifications
Equipped With

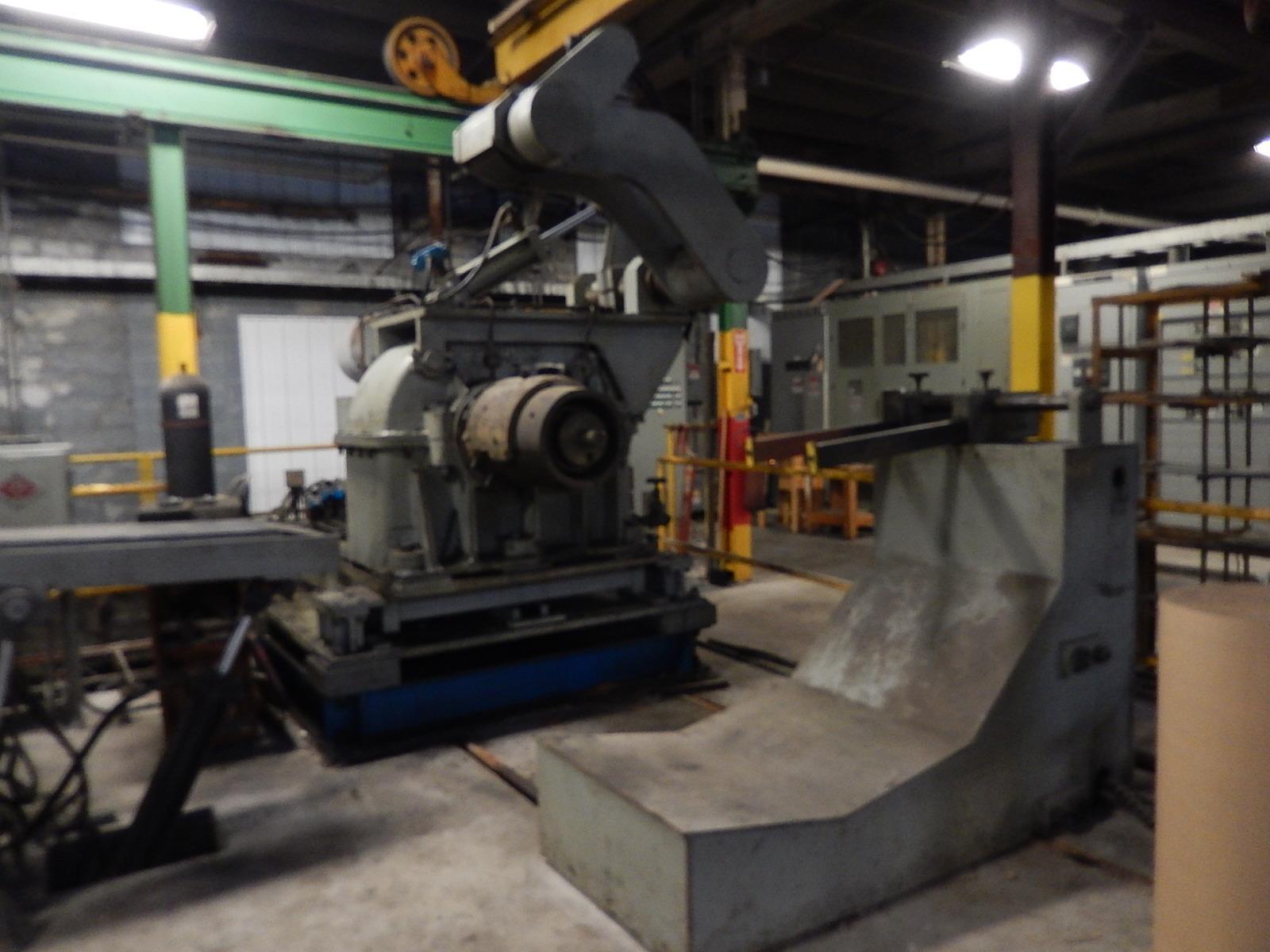

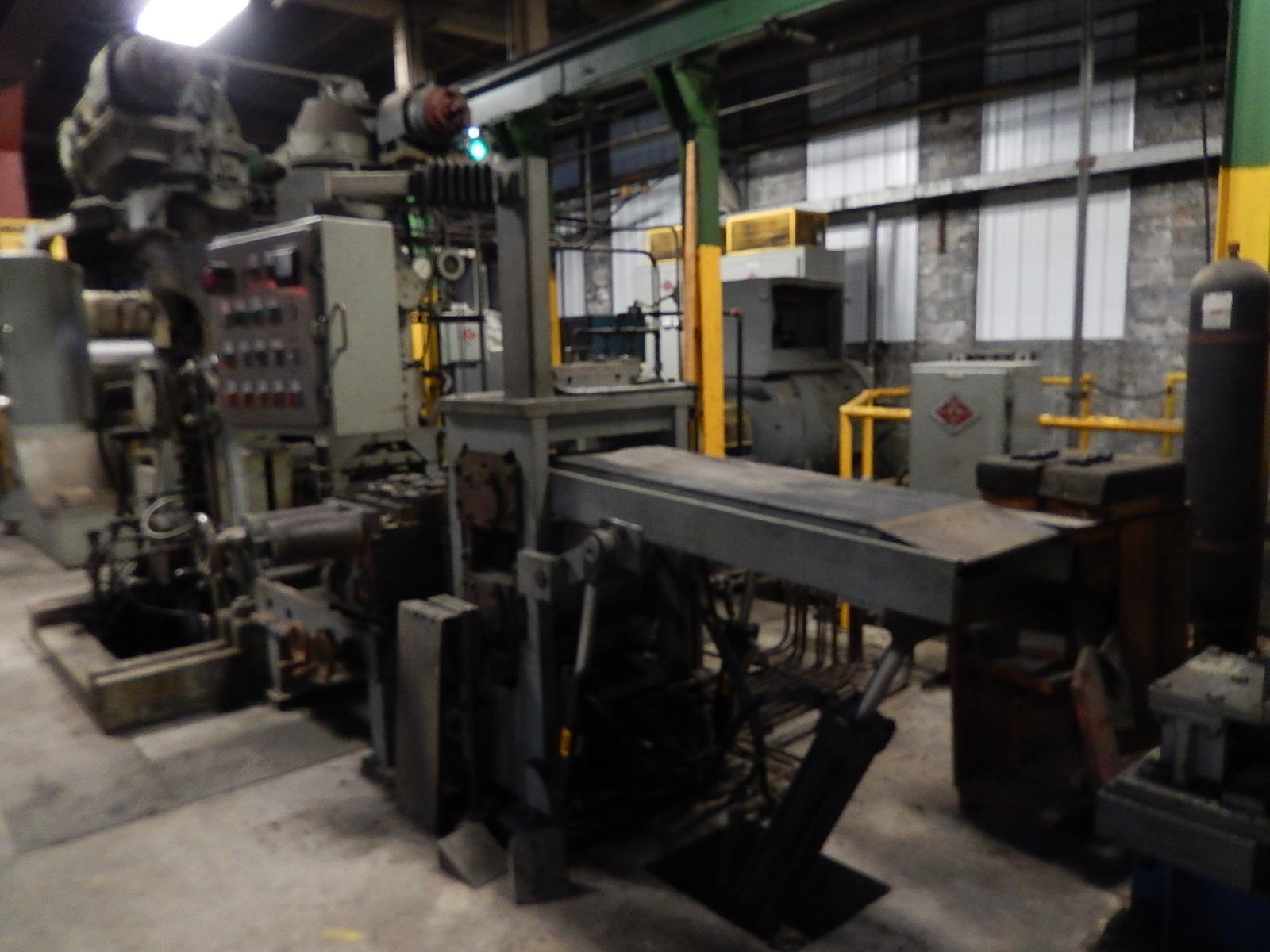

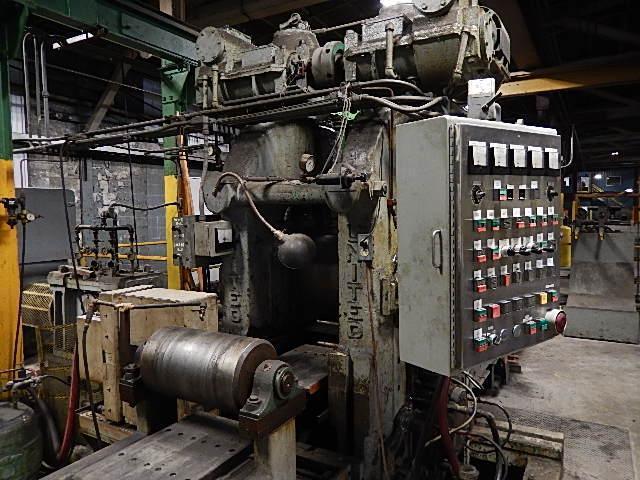

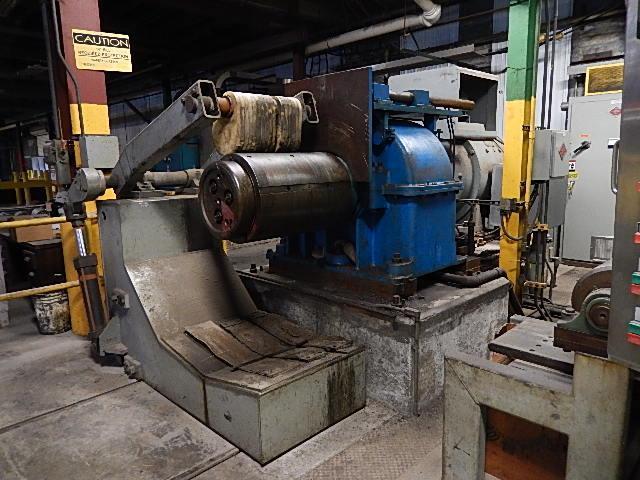

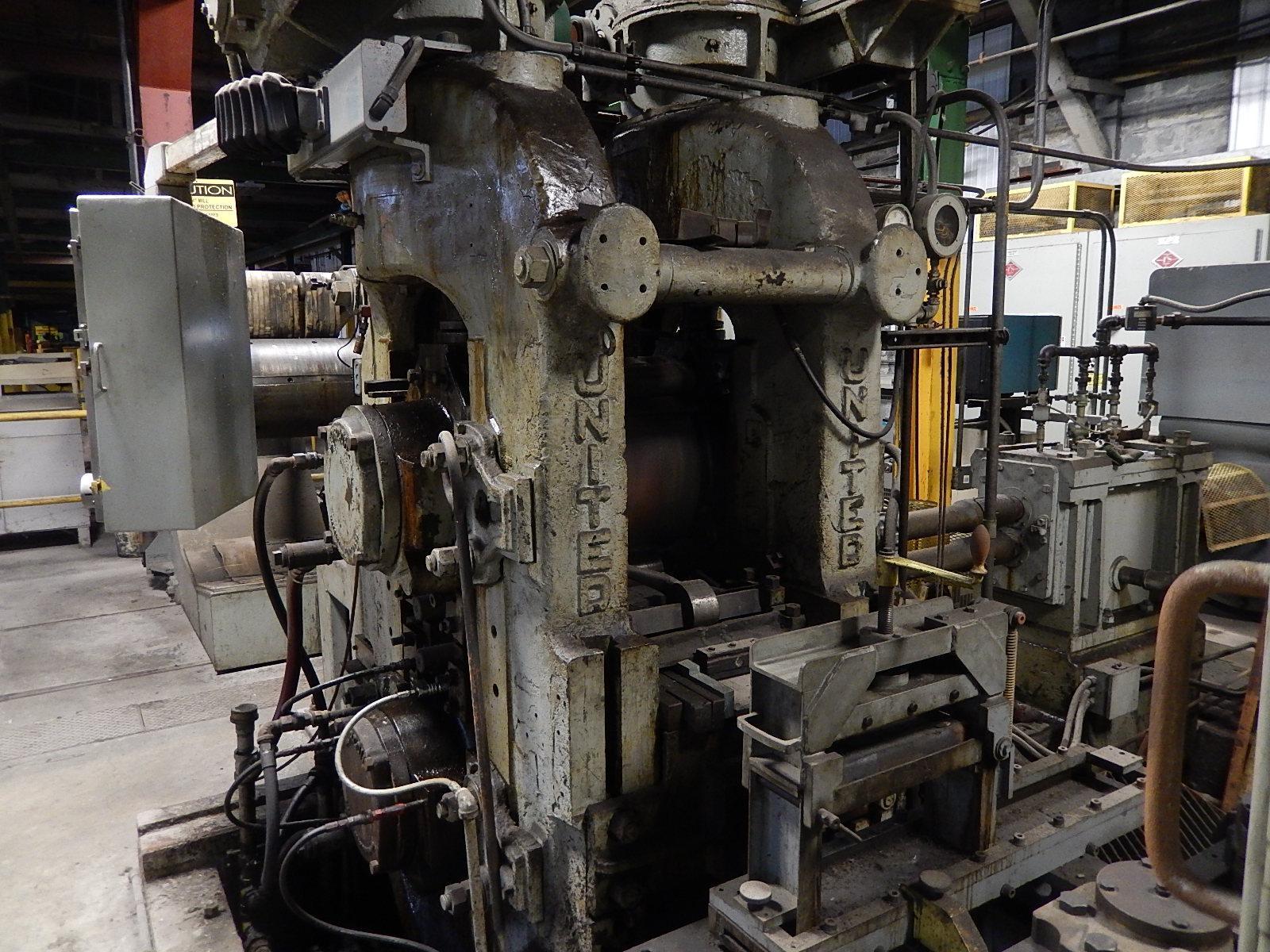

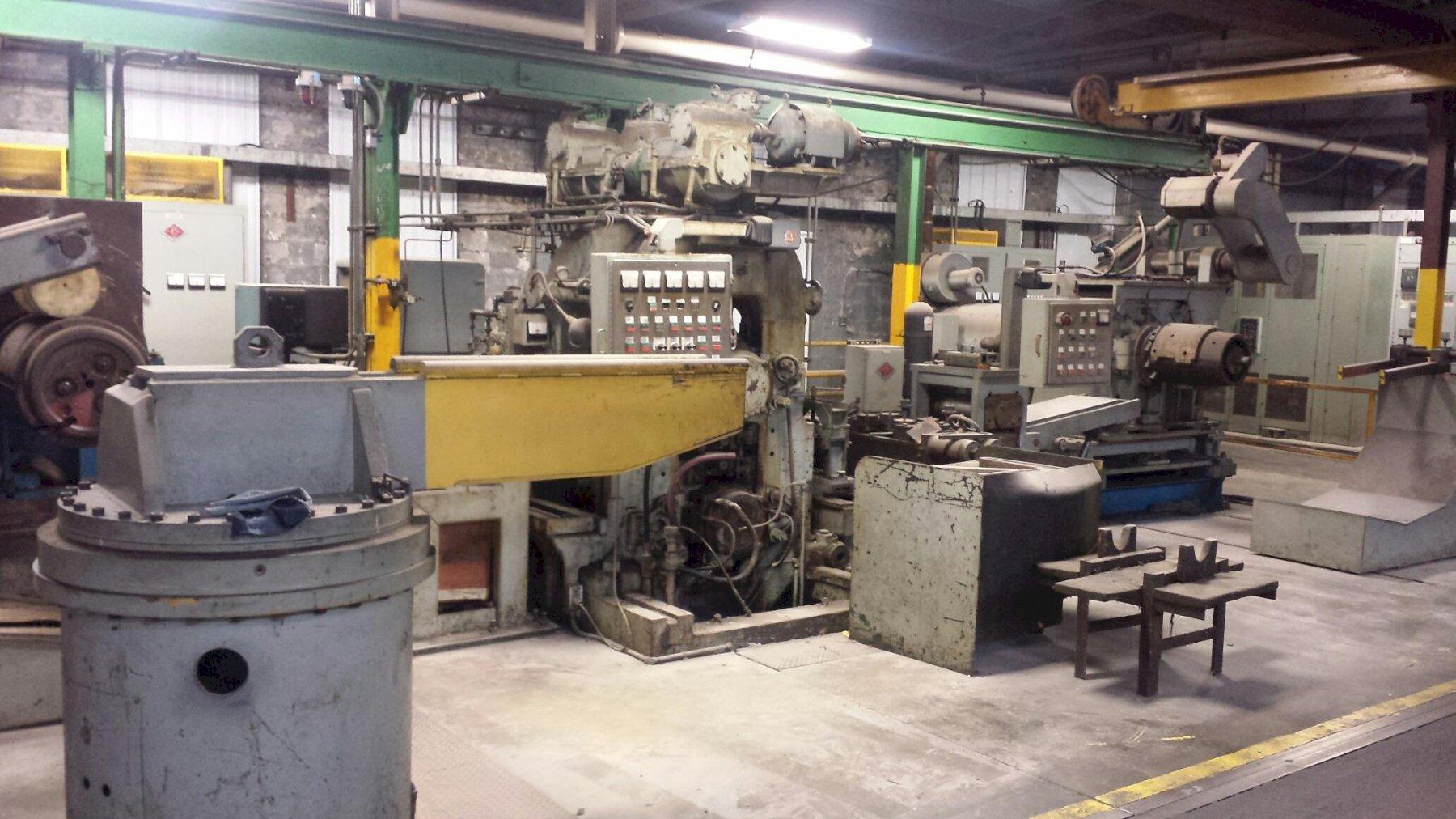

Manufacturer: United Entry Material: Stainless Steel Entry Product Dimensions Width Minimum (Inches): 1.500 Inches (38.100 mm) Width Maximum (Inches): 12 Inches (304.800 mm) Thickness Minimum (Inches): 0.010 Inches (0.254 mm) Thickness Maximum (Inches): 0.215 Inches (5.461 mm) Finished Product: Coiled Strip Width Minimum (Inches): 1.500 Inches (38.100 mm) Width Maximum (Inches): 12 Inches (304.800 mm) Thickness Minimum (Inches): 0.010 Inches (0.254 mm) Thickness Maximum (Inches): 0.205 Inches (5.207 mm) Coil O.D. Maximum (Inches): 72 Inches (1,828.800 mm) Coil I.D. Minimum (Inches): 20 Inches (508.000 mm) Rolling Mill Use: Skin Pass Rolling Mill Design: Non Reversing Mill Type: 4 High Uncoiler / Payoff Reel Quantity: 1 Type: Mandrel Mandrel Dimensions Diameter (Inches): 20 Inches (508.000 mm) Face (Inches): 16 Inches (406.400 mm) Drive Type: Electro Mechanical Drive Motor Quantity: 1 Horsepower: 100 HP (74.600 kw) Current: DC Mill Stand Work Rolls Roll Diameter (Inches): 5 Inches (127.000 mm) Roll Face (Inches): 14 Inches (355.600 mm) Bearing Type: Roller Back Up Rolls Roll Diameter (Inches): 18 Inches (457.200 mm) Roll Face (Inches): 14 Inches (355.600 mm) Bearing Type: Oil Film Driven: Work rolls Drive Spindle Type: Universal Screwdown Screwdown Type: Electro-Mechanical Reducer Mill Drive Type: Pinion Stand Bearing Type: Roller Main Mill Motor Quantity: 1 Horsepower: 200 HP (149.200 kw) Current: DC Roll Change: Manual Exit Tension Reel Quantity: 1 Type: Mandrel Mandrel Dimensions Diameter (Inches): 20 Inches (508.000 mm) Face (Inches): 18 Inches (457.200 mm) Drive Type: Electro Mechanical Drive Motor Quantity: 1 Horsepower: 200 HP (149.200 kw) Current: DC Previous Use: SS Skin Pass Comments: Mill: installed and operating - Under power for inspection
